PrintWeigher

SKU : PW02 Ready to Ship
USD 3,556.82 Per Piece
Minimum order quantity : 1
Description

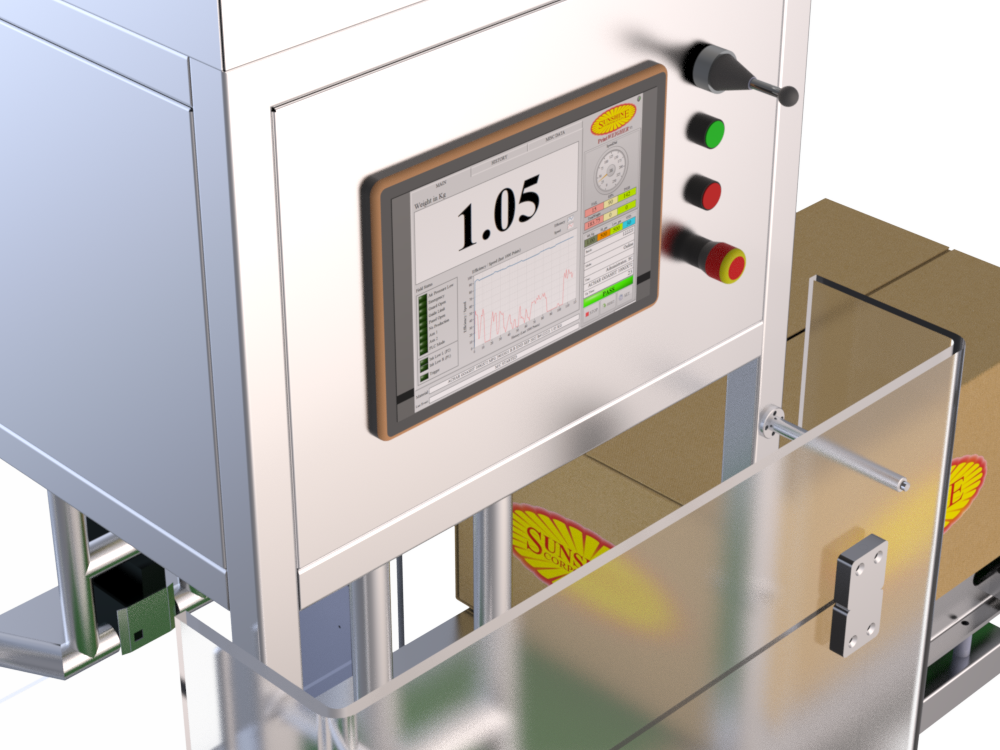

High Resolution weighing / printing of Shipper / Cartons on both side panels after Taping. High Res TIJ Printing Max Print Height 12 mm. Weighing range between 5 - 85 Kg. Max speed 25 Cartons per minute. 3 Level user access and historian software. Highly Customizable / Maintainable. Easy maintenance (loadcell replacement in 15 minutes). Motorized vertical adjustment of twin print heads. Weber Germany X1JET PRO Standard TIJ Printers with HP ink Cartridges Qty 02 each Included in the offer. All motors from ZD China. Loadcell Controller LAUMAS Italy. 10. 1 inch Fanless Core i5 Industrial Touch Screen PC for HMI. CLICK PLC from AutomationDirect USA. Automatic / Software based Calibration. 10 Kg Calibrated dead weight provided with each machine for routine calibration. Built with SS304 Stainless Steel.

Features

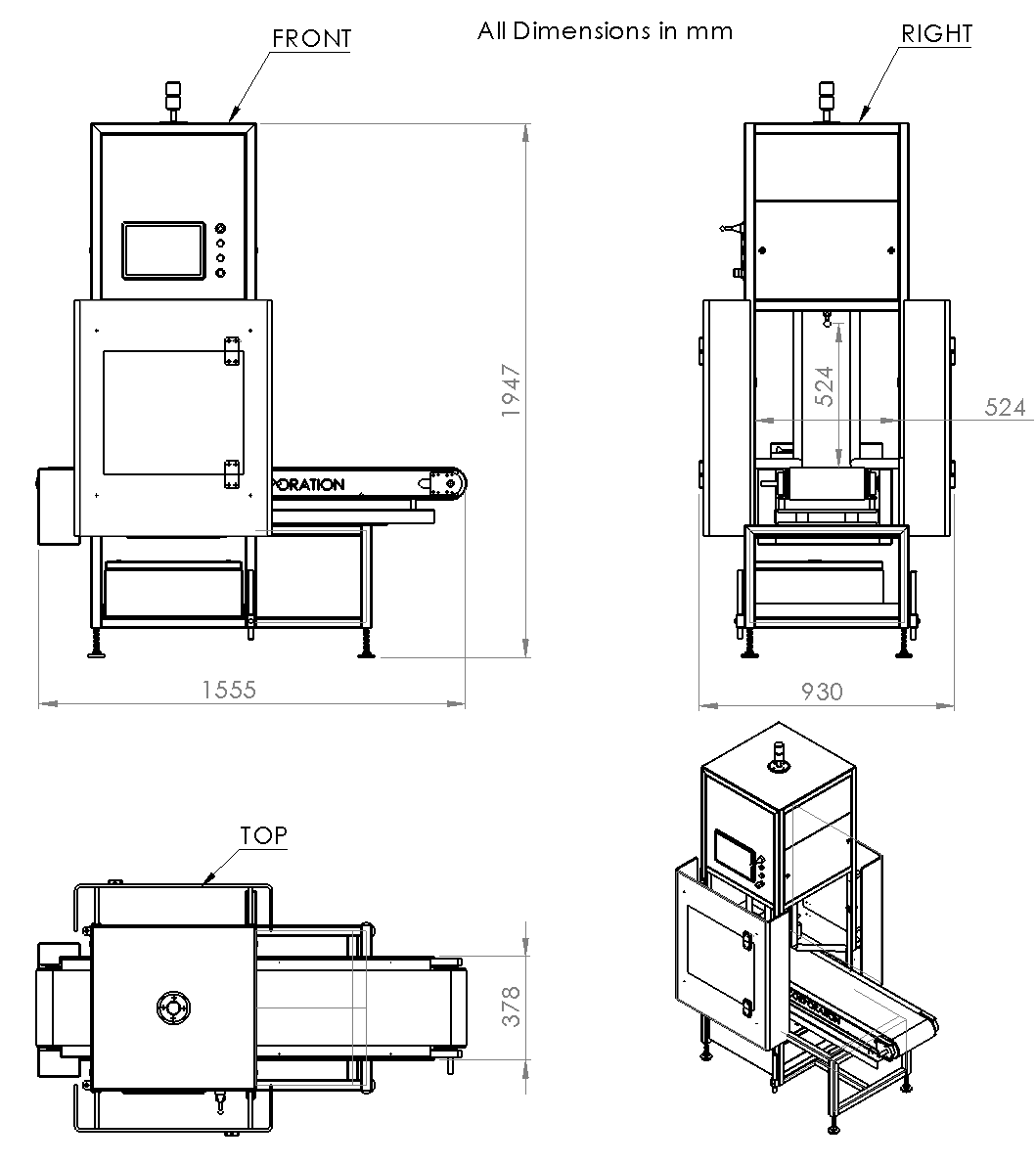

5 Kg to 85 Kg range. 400 x 450 x 380 mm Shipper size. High Res TIJ Printing Max Print Height 12 mm. Max Speed 25 Cartons Per minute.

Product Details
  • Unit Size Piece
  • Min. Order Quantity 1 piece
  • Weight 156 kg
  • Carton Dimensions (L×W×H) 155.5 centimeter × 93 centimeter × 194.7 centimeter
  • Ready to Ship Yes
  • Stock Status In Stock
  • Sample Available Yes
